Professional Slurry Test Kit - Mud Hydrometer, Viscometer, Marsh Funnel & Viscosity Cup for Drilling Fluid Analysis | Oilfield, Construction & Geotechnical Testing Equipment

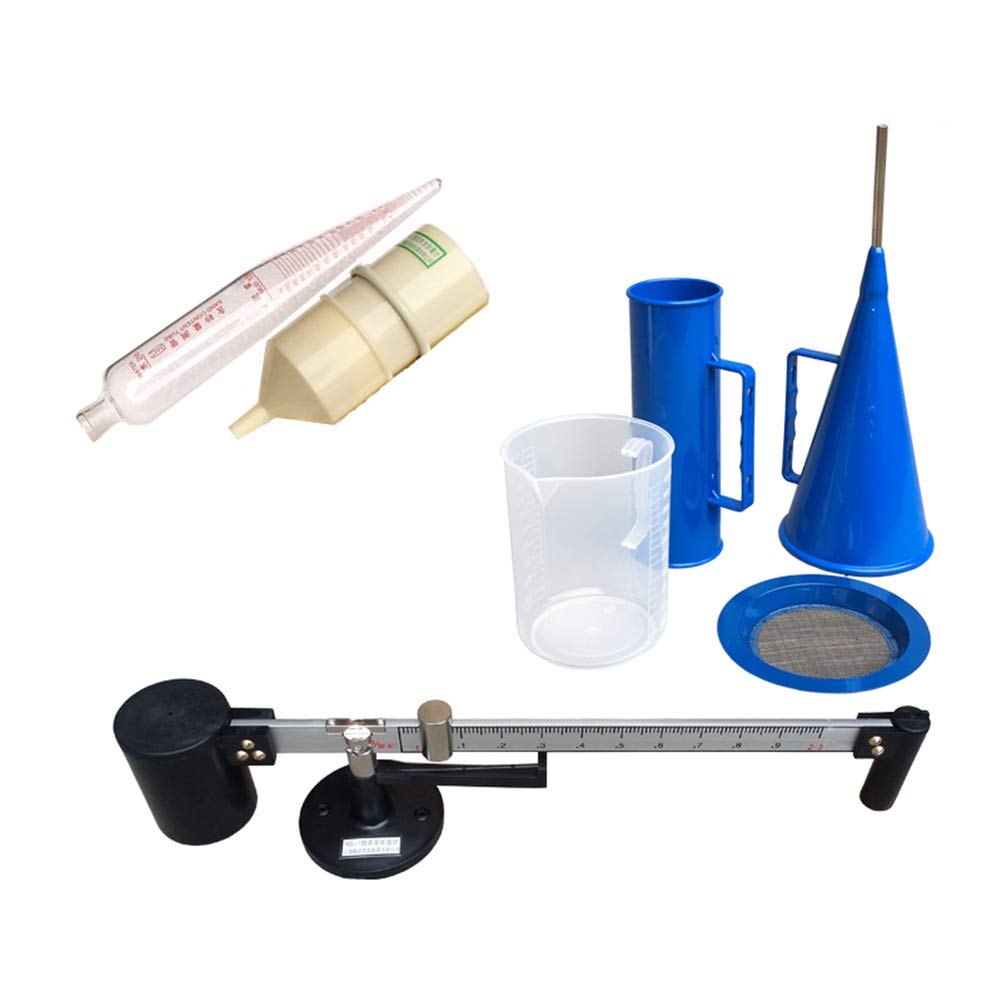

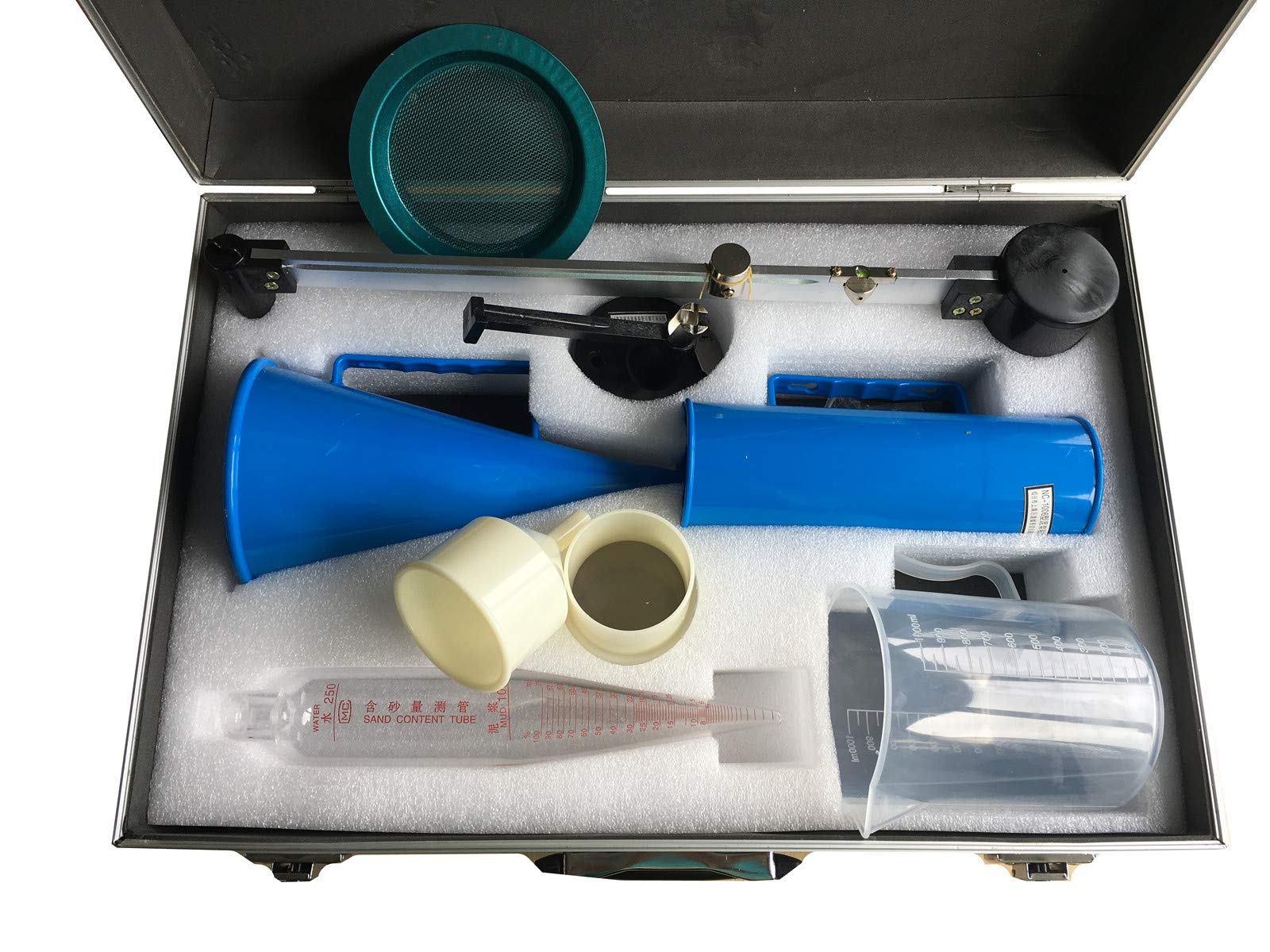

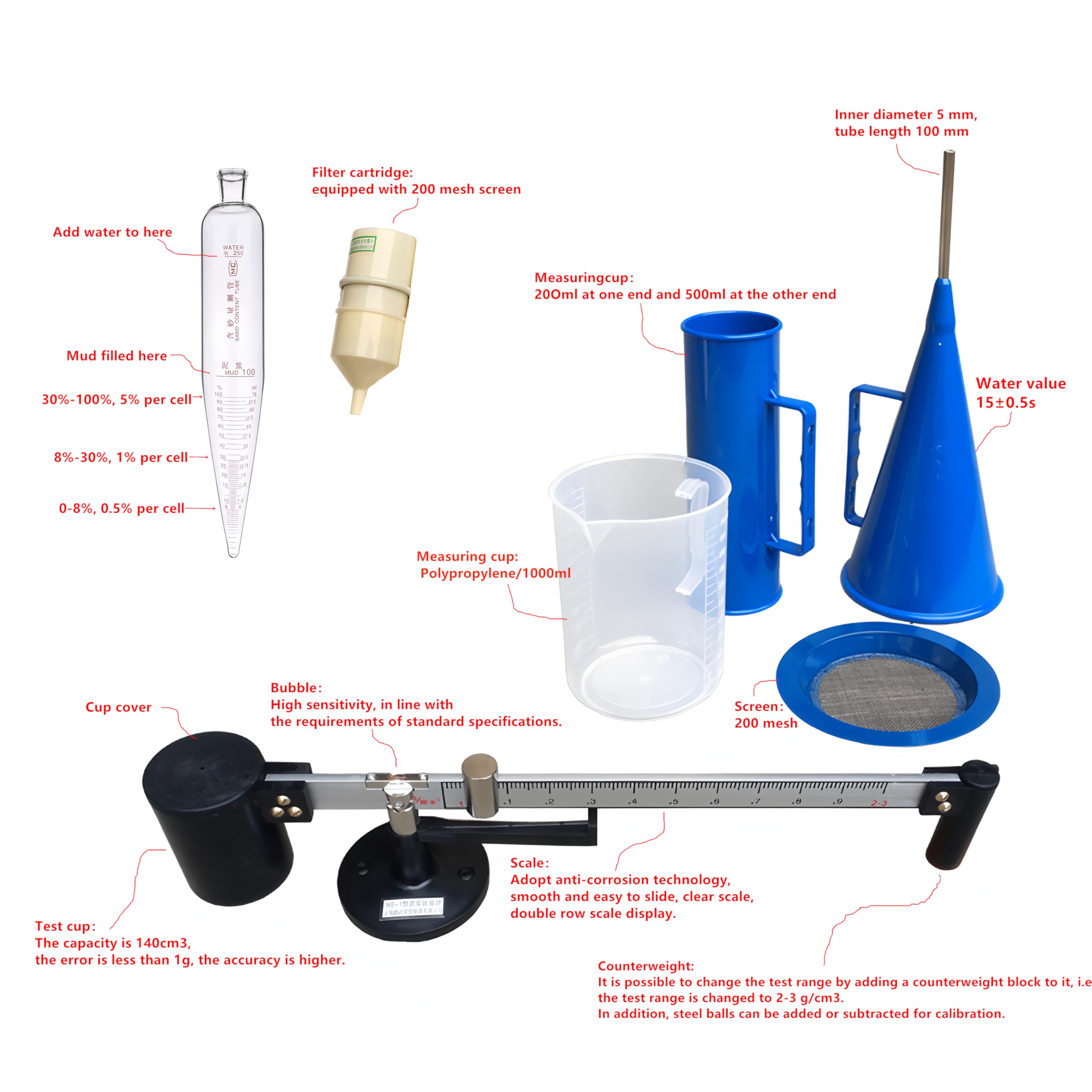

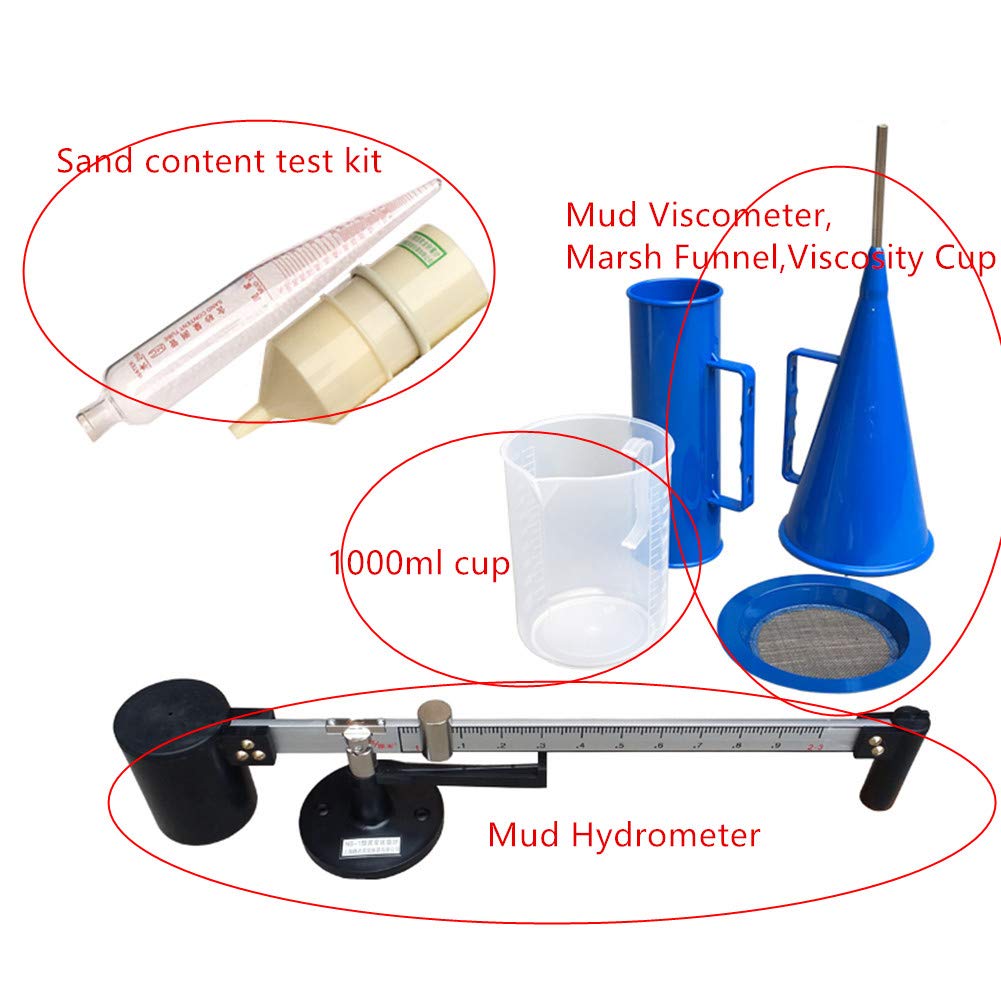

This tester is made in accordance with industry standards and has a wide range of applicability，Mud Hydrometer can be used for mud analysis and weight measurement in highway construction site, bridge, mixing station or laboratory. include：This kit is a three piece mud set, including Mud Hydrometer, mud viscometer and sand content meter. The kit can be used for laboratory measurements of viscosity, specific gravity / density and sand content. 1. The mud hydrometer is made of engineering plastic sample cup and has good corrosion resistance. The unit is g / mm³. Measurement range: 0.96-3 g /cm³, Measurement accuracy: 0.01 g / cm³, Mud cup capacity: 140cm³ . 2. Mud Viscometer: Mud viscometer is suitable for measuring the viscosity of mud in well sites and laboratories. It is calculated by the time required for 500mm3 mud to flow out of the viscometer, in seconds.The diameter of the outlet pipe hole is 5mm and the length is 100mm 3. sand content meter: Sand content meter is determined by the change of mud volume after filtration through screen, expressed as a percentage. Filter mesh specification: 200 mesh; calibration: To check whether the instrument is accurate, the mud cup can be filled with distilled water. If the specific gravity measured in the same way is 1, the meter is accurate.If the result is not 1, then the balance cylinder cover of the hydrometer can be unscrewed to increase or decrease the metal particles in the cylinder so that the specific gravity measured is 1.
